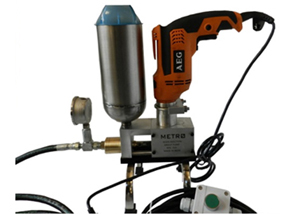

Epoxy & Pu Injection Pump (Model- MIE-250)
MIE-250 model single Component professional resin injection pump is powered by electronic Variable speed drill machine. MIE-250 is a piston operated pump, piston generates a high pressure on the fluid. The Epoxy, PU or Resin chemical from outlet goes with a high injection pressure and velocity. Resin, Pu or any type of waterproofing chemical having a viscosity of 50 to 800 cps can be efficiently pumped with a high pressure up to 250 bars by using MIE-250.
| Item | Feature | Benefit |
| Pump | Output Pressure up-to 8000 psi | Suitable for injection grouting. |
| Output discharge up-to 1 LPM | Suitable for fast acting chemicals and time saving. | |
| Suitable Material selection | Compatible with grouts. | |
| Detachable | Easy to clean and maintain. | |
| Drive Motor | Electronic drill machine | Provides High torque. |
| Low Weight (2.7 kg approx.) | Can be carried easily. | |
| 220 V A.C. | Easily available. | |
| Stainless Steel feed Hopper | 1.5 liter capacity | High Volume capacity. |
| Cleaning | Can be scrapped and cleaned. | |
| Durability | Highly durable. | |
| Fluid handling | Epoxies, urethanes, solvents. | |
| Fluid Hoses | Compatibility with epoxies, urethanes, solvents, water | One hose fits all – no changing hoses between applications |
| Swivel connection | Easy to change hoses – saves time, Orientation at any angle. | |
| High Pressure capacity. | Suitable for grouting job. | |
| Pressure gauge | 9000 psi | Pressure can be regularly monitored. |
| Injection Gun | Ball type valve design | Avoids splattering in changeover from hole to hole. |
| Other Accessories | Suitability | Suitable with pump and grouting jobs. |
